Self-Attention Kernels

Hand-optimized Causal Multi-Head Self-Attention (CMHSA) written from scratch in C++/CUDA and progressively tuned across three backends (single-threaded SIMD, OpenMP, and CUDA), with every kernel validated numerically against PyTorch’s reference implementation (naive and scaled_dot_product_attention). The goal was less to beat cuBLAS than to understand, layer by layer, where the time actually goes on modern hardware.

Three different machines: the A100 GPU (Cineca), and two Orfeo CPU partitions: single-thread on a Zen 4 EPYC 9374F (Genoa), multicore strong scaling on a 128-core Zen 2 EPYC 7H12. GPU/multicore config: batch=4, n_heads=32, seq_len=4096, head_dim=128 (single-thread uses batch=1, n_heads=4).

Single-threaded: the compiler flag that mattered

The most surprising result came from chasing why -O3 -march=native looked vectorized but ran slowly. Inspecting the assembly showed AVX-512 loads followed by 16 scalar vaddss instructions per iteration. The compiler refused to keep partial sums in a vector register because IEEE 754 addition isn’t associative. Adding -fassociative-math unlocks proper vfmadd231ps FMA accumulation and gives a 3.5× speedup on its own; padding row strides to 64-byte boundaries adds another ~30%, and -ffast-math enables libmvec’s vectorized expf for the softmax. Cumulatively v0 → v1_d is ~23×, almost entirely from flags and a stride tweak.

Multi-threaded: tiling for cache, not just cores

OpenMP collapse(2) over (batch, heads) parallelizes the trivial axis but leaves K/V being reloaded per query. v1 introduces Q-tiling (TILE_Q=32) so each K row is loaded once per tile and reused across 32 queries, with causal masking enforced via q_start = max(key_pos, q_tile). This is the same locality argument that motivates Flash Attention on the GPU side.

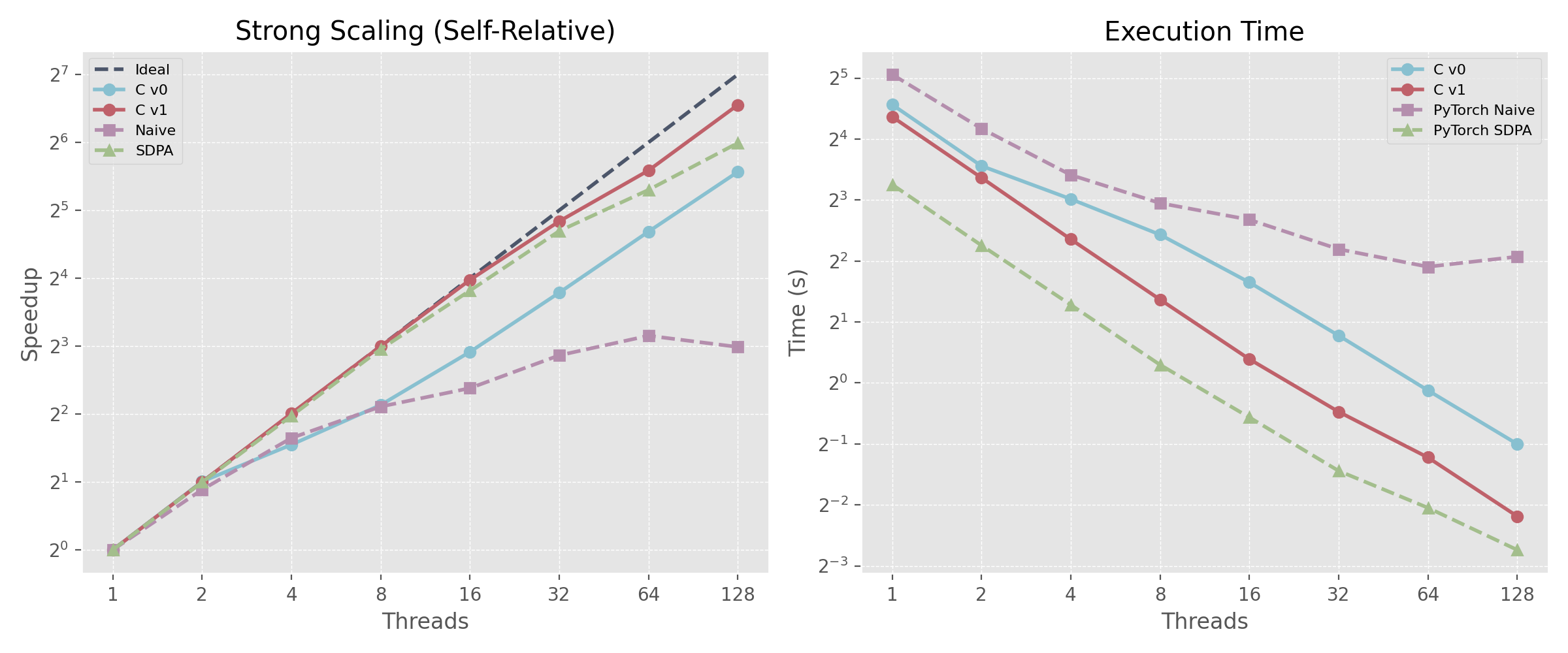

Strong scaling on Orfeo’s 128-core EPYC 7H12 (Zen 2) partition is near-ideal up to 64 threads and holds ~73% efficiency all the way to 128 (a ~94× speedup, 20.6s → 0.22s). The gentle taper past 64 is where NUMA effects (8 NUMA nodes on this box) and memory bandwidth start to bite.

The contrast with PyTorch is the real payoff. PyTorch’s naive attention barely parallelizes. It tops out around 8–9× and actually regresses past 64 threads (4.20s at 128 vs 3.75s at 64), because without tiling it stays pinned by memory bandwidth. v1’s cache-aware tiling is what lets it keep scaling. In absolute terms at full 128 cores, v1 runs in 0.22s vs PyTorch naive’s 4.20s, a 19× gap. PyTorch’s fused SDPA stays ahead at every thread count, but the margin shrinks to just ~1.5× at 128 cores (0.15s vs 0.22s), remarkably close for a hand-rolled kernel.

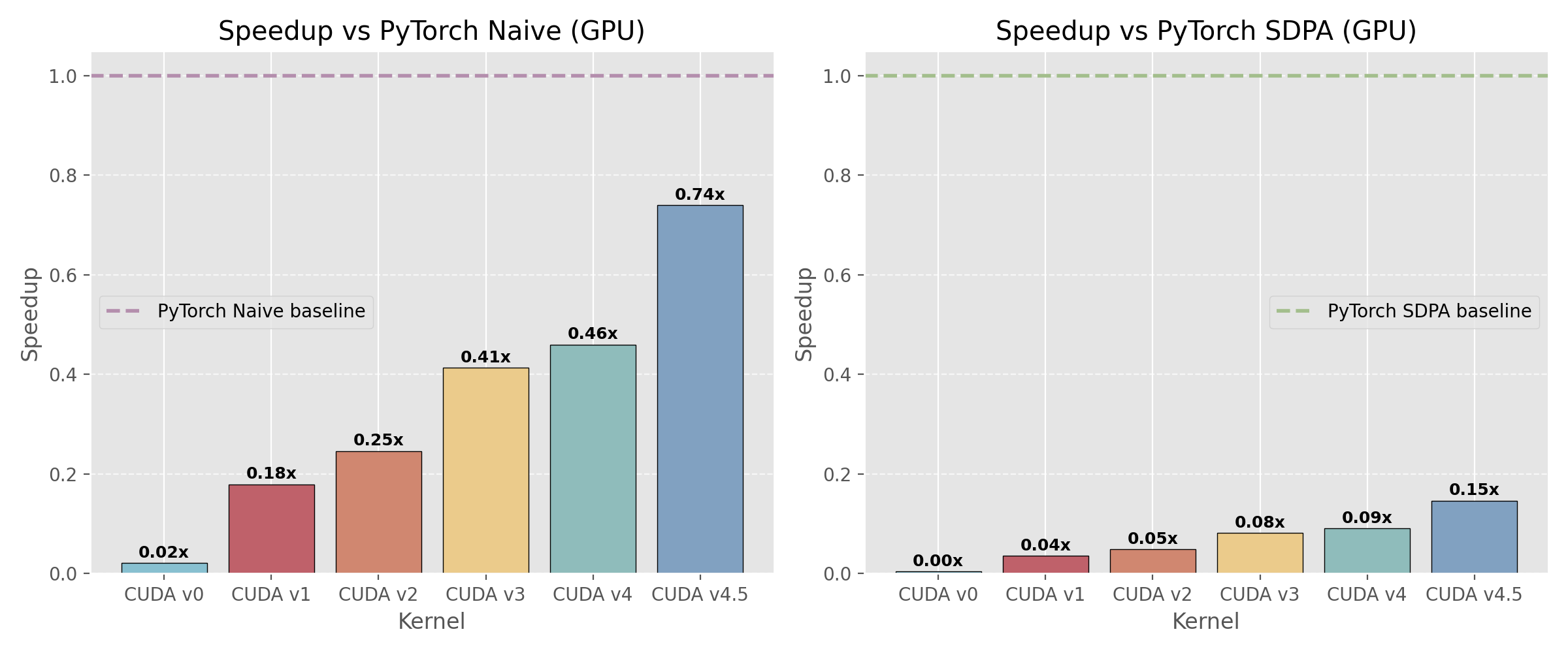

CUDA: six versions, one stubborn bottleneck

The CUDA path walks through six progressively rewritten kernels:

• v0: one thread per query. Catastrophic: 46× slower than PyTorch naive. Useful as a counter-example.
• v1: collaborative dot products across a 32-thread warp with __shfl_down_sync reduction. Coalesced Q/K loads. 8.3× over v0.
• v2: XOR-pattern warp reductions (__shfl_xor_sync) leave the result in every lane, eliminating a broadcast. Pack 8 warps per block for occupancy. 1.37× over v1.
• v3: online softmax (Flash Attention style): maintain a running max/sum and rescale previous accumulations with $\alpha = e^{m_{\text{old}} - m_{\text{new}}}$ as new scores arrive. Zero workspace, single pass. 1.68× over v2.
• v4 / v4.5: Q and the output accumulator live in registers; the inner loop is rewritten in float4 for vectorized loads. 1.61× over v4.
• v4.6: dual-key processing: compute scores for keys $k$ and $k{+}1$ together, halving warp reductions and softmax-update overhead. This is the kernel that finally crosses 1.09× PyTorch naive.

The instructive part is that v5’s shared-memory tiling was actually slower than v4.5: the __syncthreads() cost dominated at this sequence length. v6 recovered to 0.117s with better tile sizing, but the lesson stuck: textbook Flash Attention tricks only pay when you can amortize the sync.

Where the gap with PyTorch SDPA comes from

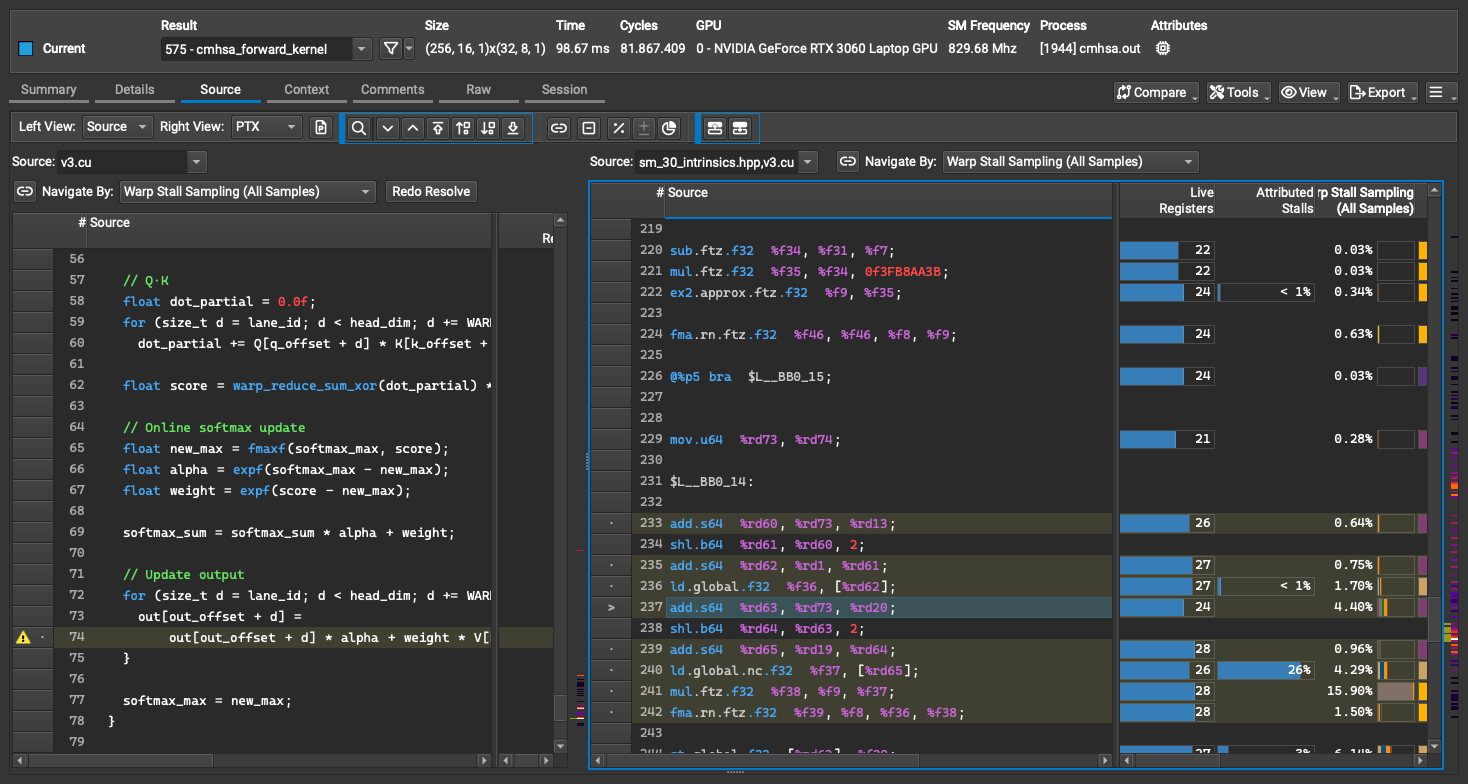

PyTorch SDPA stays ~5–7× ahead. Profiling v3 with Nsight Compute makes the reason concrete: 26% of stall cycles are on the global-memory load for V (ld.global.nc.f32 at line 240), and the L1 hit rate sits around 37%. The kernel is memory-bound, not compute-bound.

The remaining gap is mostly things this project deliberately doesn’t do: Tensor Cores (FP32-only here, vs. SDPA’s FP16/BF16 mixed precision giving 8–16× throughput), head-dim specialization (SDPA has dedicated kernels for head_dim=64,128), and tighter K/V tiling to fully reuse shared memory.
