MoE Interpretability
Reading MoE experts with sparse vocabulary directions and testing when specialization is real
Do Mixture-of-Experts models really divide computation into clean, interpretable specialists?
This project studies that question in allenai/OLMoE-1B-7B-0924-Instruct and openai/gpt-oss-20b. Its main contribution is Expert Pursuit, a method that turns expert activations into sparse, readable token summaries. A smaller causal study then checks whether those apparent specializations actually influence generation.
Expert Pursuit
I adapted HeadPursuit from attention heads to MoE feed-forward experts. The pipeline captures each expert’s gated output across many prompts and runs Simultaneous Orthogonal Matching Pursuit (SOMP) against the model’s normalized unembedding dictionary. The selected token directions form a sparse, readable summary of how that expert’s output varies; explained variance ratio (EVR) measures how much of the variation the summary captures.
The heatmap shows the final EVR of every GPT-OSS layer–expert pair. The same analysis covers all $16 \times 64$ OLMoE experts. On the Pile-10k extraction, the median 25-atom EVR is about 0.042 for both models: a small vocabulary basis captures only a limited part of a typical expert’s output variance.
What does an interpretable expert look like?
The aggregate EVR distribution is only half the story. The token lists make the method concrete: below are representative OLMoE experts found by unrestricted SOMP on 10,000 TriviaQA questions. Subword fragments are omitted for readability.
| Expert | Candidate specialization | Representative top SOMP atoms | EVR@25 |
|---|---|---|---|
| L15 E03 | Numbers and dates | 35, 66, 2004, 150, 17, four, twenty, 123, 91 | 0.256 |
| L14 E37 | Numbers and dates | 1997, 16, 1970, 26, June, 11, 19, 1930 | 0.104 |
| L15 E49 | Geography | Japanese, American, Europe, Ukrainian, British | 0.127 |
| L15 E16 | Names | Ryan, Richard, Robert, Daniel, Garcia, James | 0.073 |
| L15 E38 | Biology | human, chemical, plant, metabolism, food, blood | 0.076 |
| L15 E59 | Entertainment | comic, music, debut, screen, thriller, play | 0.071 |
These readable examples cluster in later layers, although the final unembedding is also a better-calibrated readout there. High EVR does not automatically mean a clean concept: the highest-EVR early expert mixes unrelated atoms such as this, Kindle, Sutton, and History. Expert Pursuit should therefore be read as a sparse summary, not as proof that every expert has one meaning.
A targeted query recovers the same specialists
Restricting the pursuit dictionary to number words independently recovers L15 E03 and L14 E37 near the top, even on a different stored extraction. Their unrestricted lists above are already dominated by numerals and dates. This is useful convergent evidence that the specialization is not just a hand-picked token list.
| Expert | Top atoms from the numbers-only query | EVR@10 |
|---|---|---|
| L15 E03 | 10, 6, 100, 9, 2 | 0.041 |
| L14 E37 | 7, 3, five, 10, 4 | 0.023 |
Why use SOMP instead of a logit lens?
The ordinary logit lens reads one direction derived from an expert’s mean output. SOMP instead selects several vocabulary directions that explain how its centered outputs vary across inputs.
| Readout | EVR@1 | EVR@3 | EVR@10 |
|---|---|---|---|
| Logit lens (one direction) | 0.0010 | N/A | N/A |
| SOMP sparse basis | 0.0020 | 0.0056 | 0.0146 |
Across all 1,024 OLMoE experts, the first SOMP atom captures about 2× the variance of the lens direction; ten atoms capture about 14× as much. The absolute EVR nevertheless remains below 2%, reinforcing the main conclusion: some specialists are clear, but most expert outputs are only weakly aligned with a small set of vocabulary directions.
Causal follow-up

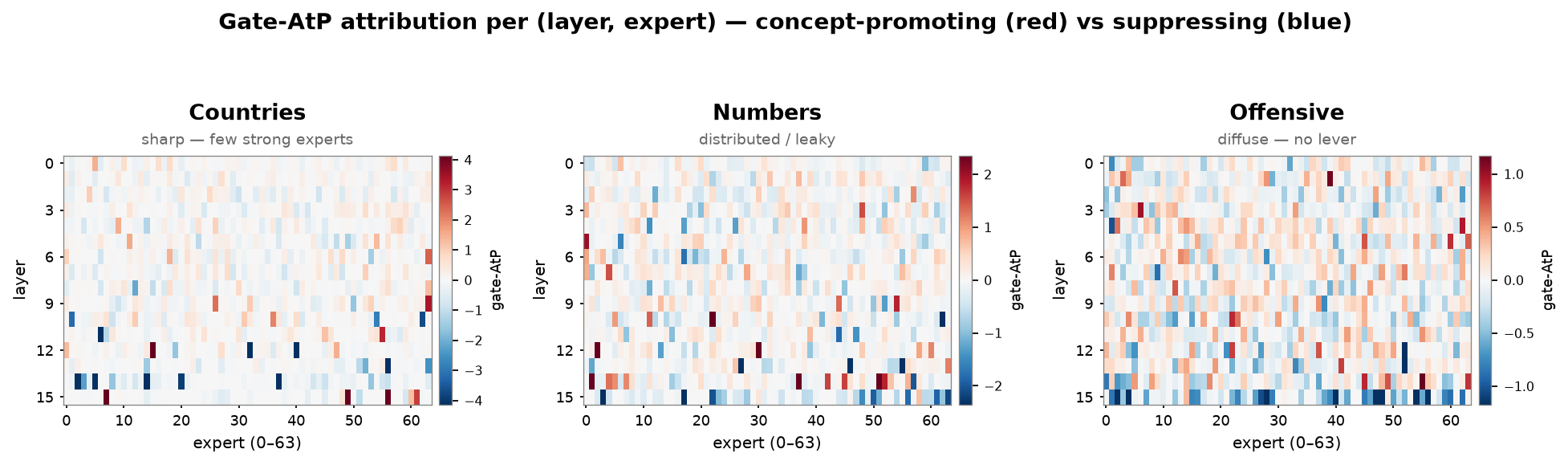

The final stage asks whether readable associations also control generation. Gate attribution patching produces the maps below: countries concentrate in a few late-layer experts, numbers are more distributed, and the offensive-word proxy has no strong sparse handle.
This follow-up is intentionally secondary: Expert Pursuit generates readable hypotheses; causal gate interventions test which of those hypotheses actually change model behavior.
